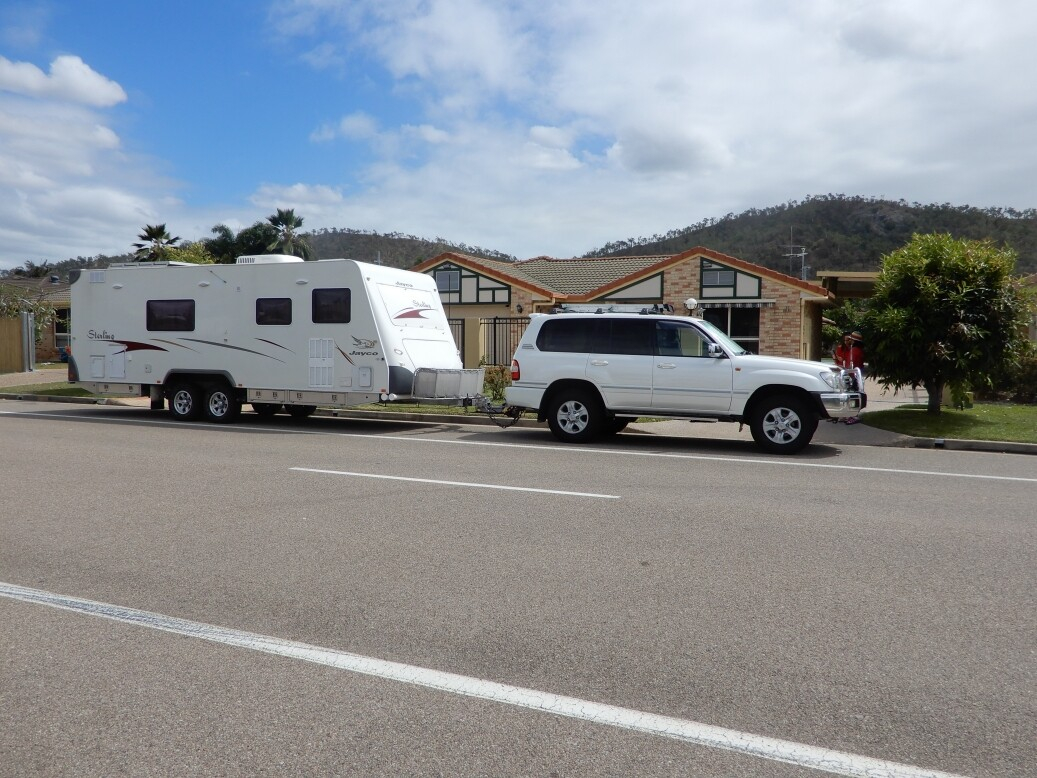

Jayco Sterling Model no: 24/75/2 2008

Caravan Upgrade & Modification Summary

On Road specifications & Dimensions:

Vin: 6AM00000081K72149

ATM: 3495 kg

GVM: 3146kg

Internal floor Length: 24ft (7..3m)

External overall Length: 30ft (9.140m)

Travel Height Clearance: 9ft 10ins (3m)

Width Clearanc:e (Including Rolled Awning):

8ft 2in (2.469)

Ground Clearance: 1ft (300mm)

Electrical

Revised & Upgraded 12V Electrical Distribution System

Change-over Switch: Mains / Inverter Supply.

Revised & Upgraded 240V Main Switchboard

Solar Integrated & 240V Charging system

3 X 105 AH Lead Acid Batteries

12V / 2000W Integrated Power inverter to 240V Distribution System

Dual Axle Power Movers (Reuch) to main wheels

Flood Lighting to Left Side, Right Side, Rear and Front Boot

Stationary Night Clearance Light on Drawbar

Rear Towing Camera Connection to Tow Vehicle on Drawbar

50Amp Anderson Coupling in addition to 7 pin

30Amp Anderson Couplings Outlats on easch side of van

Entertainment / Sound / Communications

2 X Pioneer Head Units. Bluetooth Compatible

2 X 300W sound system Amplifiers

6 X 40w Upgraded Sony Speakers

1 x 12 inch Sub-woofer

Panasonic 32″(81cm) Smart TV, Mounted

Latest Model Wingard UHF Antenn snd Signal Amplifier

12v LG DVD player

Altec VAST High Definition Satellite Transceiver

Portable VAST, Optus C1 Satellite Dish & Tripod

All Necessary Connecting Cables

4G / 5G Mobile Network Antenna for Signal Booster

Chassis & Running Gear

Jayco Outback Specification Heavy Duty Chassis

Hot-dipped Galvanized Chassis Frame

4 X (150 X 50mm) Aluminium Strengthening Beams

Upgraded Dexter Axles and Suspension

50mm Solid Axels

9 leaf Australian Made Springs

Upgraded 4 X 12inch Dexter Drum Brakes

Dexter Electronic Vehicle Stability Control System Fitted to Brakes

Upgraded Rating to 4.449 Tonnes

Aluminium Under body Storage boxes Fitted to Cassis All Around

4 X Dual Axle Reich Power Movers (German) to main wheels

5 X Main wheels Jayco Alloy 15in X 7in 1000Kg

5 X Tyres: Maxxis AT980 All Terraine (235/75/R15) 109S

Outback Specification Heavy Duty Chassis

Drawbar Mounted stone Guard. Hence no stone chips

Extended & Height Adjusted Draw Bar & Coupling

Dual Heavy duty Jockey Wheels for powered self driving

Modified & Strengthened Rear Bumper-bar to protect Spare Wheel

Upgraded And Plated ATM 3.495 Tonnes

Plumbing

Integrated Ball Valve Filling & Draining Network

Onboard filtering and tank filling System

Full Size Dual under sink filters to .5 Microns

Integrated Mains input hose connection Point

Pressure regulation valve and Pressure Gauges

2 X 96 Litre Water Tanks (Front & Rear)

1 X !00 Litre Water Tank (Centre Mounted)

1 X 15 Litre Pressure Tank (60PSI) in Parallel with Pumps

2 X 12V Pressure Water Pumps 1 to 45 PSI & 1 to 60PSI

1 X 96Litre Grey water holding tank

All Associated Water Tank Level Gauges etc

New Dometic 22Ltr Hot water Heater: Gas / 240V Electric

Internal Non-s-standard Upgrades

Roof Mounted Air Command Ibis 3 Air-con & Heater

Wall Mounted Air Command Heron 3 Split system Aircon & Heater

Ebersparcher Airtronic Diesel 2kw Room Heater

Under floor 12 Litre Aluminium Diesel Tank With Internal Level Gauge

Carbonmonoxide Gas Detector & Alarm

LPG Gas Detector & Alarm

Laminex & Perspex Kitchen Bench Backboards

Tropical Roof ventilation For Fridge / Freezer

12V 30Amp Outlet for additional Fridge etc.

2 X Fours Seasons Tropical Roof Vents (600mm X 600mm)

Replacing Standard 400mm X 400mm Sky Lights

Fully Carpeted Floor

Standard Sterling Internal Features

Coordinated Soft Furnishings, Curtains, Pelmets &Seat cushions

Additional LED Lighting to all Pelmets

Upgraded LED Lighting to all Fittings & light Points

Fully Equipped Kitchen, draws cupboards & side-out storage

SMEV Gas Cook top, Full Oven & Separate Grill With Electric Hot Plate

LG Microwave Oven

Dometic RM601 Large (186 Litre) 3 Way Gas / 240V & 12V Fridge & Freezer

Large 6 Seat Front Dinette / Convertible to double Bed

Exterior/ slide-out Gas 2 burner Bar-b-que.

Bed Room

Queen Size Bed with inner spring mattress

Partitioned Bedroom area with concertina Doors

Bedside Cupboards with Lighting

Pioneer Entertainment Head Unit Inbuilt

Large Under Bed Storage Area

Ensuite Features Separate Shower Enclosure

Thetford Toilet

Top Loader Washing Machine

Under Bench Cupboards

Hand Basin

Lighted Mirror

Towel Rails etc

3 X Full length Wardrobes

3 X Storage Draws

Concertina Door enclosed Ensuite
